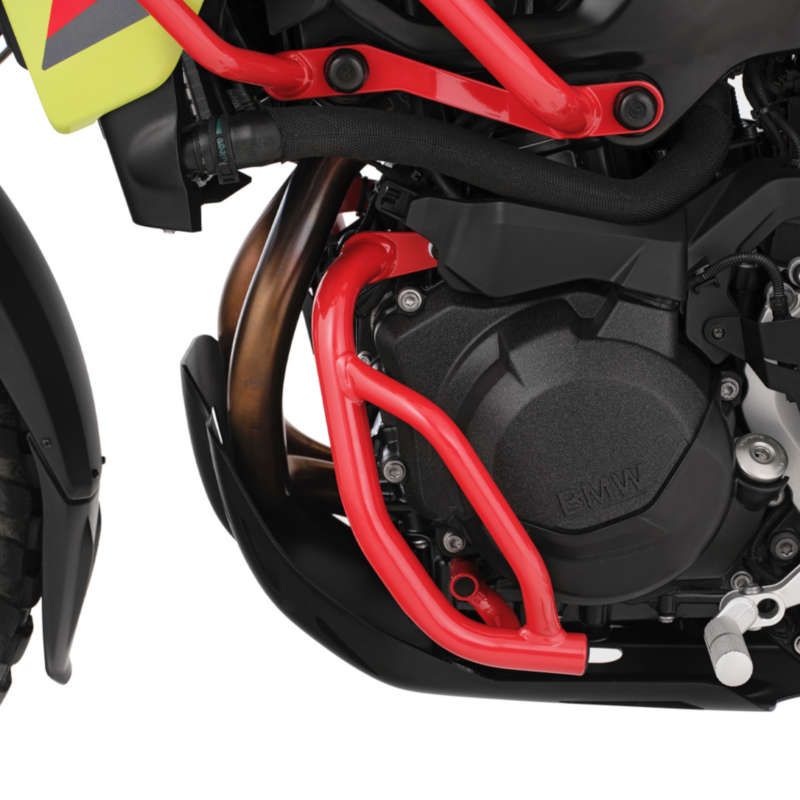

Engine guard GUARD Wunderlich BMW F 900 GS - red

The development of this Wunderlich GUARD engine guard focused on achieving the perfect balance between maximum protection and low weight. Its compact design reliably protects not only the engine, but also indirectly the water pump, clutch, and alternator, as well as their covers—without compromising ground clearance or lean angle. This two-part engine guard fits perfectly and gains stability and rigidity thanks to its specific structure – while maintaining an optimized weight. The right and left protective bars are securely attached to two selected existing anchor points. In the event of a fall, the forces are optimally distributed via the engine guard structure to the robust anchor points, effectively reducing peak loads and material stresses. In combination with the ULTIMATE tank protector (#41586-004), it forms a proven comprehensive protection concept, improves passive safety, and thus contributes to riding enjoyment. The structure is made from 25 mm precision steel tubes, formed on CNC bending machines and then carefully welded.

Aesthetically, the engine guard blends perfectly into the design of the motorcycle, harmonizing with its striking appearance and enhancing its adventurous look with refinement.

MORE DETAILS:

Main tube diameter: 25 mm
Color: red
The Wunderlich GUARD engine guard offers the ideal compromise between maximum protection and low weight.
Perfect, effective protection for the engine and components.
Discreet design, perfectly integrated and following the contours of the engine.
Maximum protection thanks to a rigid and compact tubular construction made from selected materials.
Reduction of force and torque peaks thanks to even distribution across two mounting points on each side.
No restriction of ground clearance or lean angle.
High-quality workmanship and use of the best materials.
Reduces the risk of costly damage.
No need to remove the engine guard for maintenance.
Combined with the ULTIMATE tank guard (#41586-004), it provides comprehensive protection.
Plug & Play installation.

FITMENT COMPATIBILITY:

BMW F 900 GS 2024+
