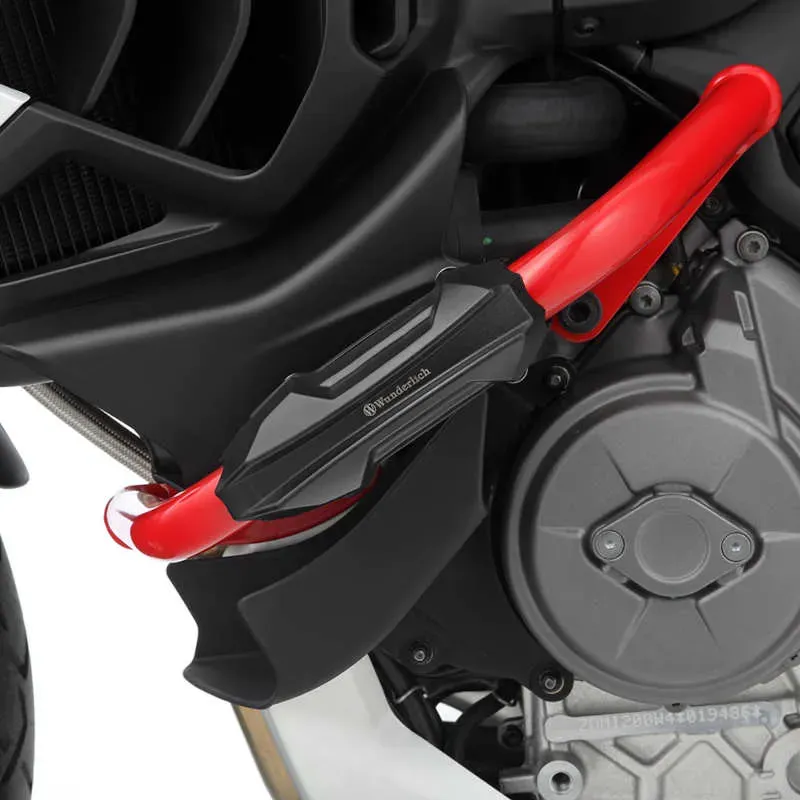

Wunderlich crash bar Ducati Multistrada V4 - red

As always with our engine protection systems, the focus is on maximum protection. Thanks to its compact, three-part design, the high-performance engine and its components are reliably protected. The structure consists of a protective bar on each side, each with two mounting points, and a connecting brace. The assembly fits the engine perfectly and, thanks to its compact shape, offers increased stability and rigidity. It is securely fastened at two carefully selected mounting points. In the event of a fall or rollover, forces are distributed across four support points, thereby reducing load peaks and the risk of damage.

Plus: Bar protectors included To intelligently complement the protection concept, the bar comes with two pre-mounted tube protectors (#70211-002). These practical protectors are made from durable plastic that minimizes the risk of scratches on the bars. They are securely fastened to the aluminum frame with four screws, ensuring a reliable hold. Their functional design and high-quality finish give them a premium look. Installation is quick and easy.

MORE DETAILS:

Material: 25 mm diameter precision steel tubes, precisely bent on a CNC machine, cleanly welded, black powder-coated.
Dimensions: tube diameter: 25 mm
Color: Red
Custom-designed protection, perfectly integrated for the high-performance engine and its components.
Reduces the risk of costly secondary damage.
Reduces force and torque peaks thanks to distribution across two solid mounting points on each side.
No reduction in ground clearance.
High rigidity thanks to a compact design – reduced weight.
Comes with two pre-installed bar guards.
Detailed and easy-to-understand instructions included.
Simple installation thanks to a precise fit.
Comes with all mounting hardware.

FITMENT COMPATIBILITY:

DUCATI MULTISTRADA V4 - Starting with the 2025 model year, the cooling pipe cover must be removed
DUCATI MULTISTRADA V4 S GRAND TOUR - Starting with the 2025 model year, the cooling pipe cover must be removed
DUCATI MULTISTRADA V4 PIKES PEAK - Starting with the 2025 model year, the cooling pipe cover must be removed
DUCATI MULTISTRADA V4 RALLY - Starting with the 2025 model year, the cooling pipe cover must be removed
DUCATI MULTISTRADA V4 S - Starting with the 2025 model year, the cooling pipe cover must be removed
DUCATI MULTISTRADA V4 RS - Starting with the 2025 model year, the cooling pipe cover must be removed
