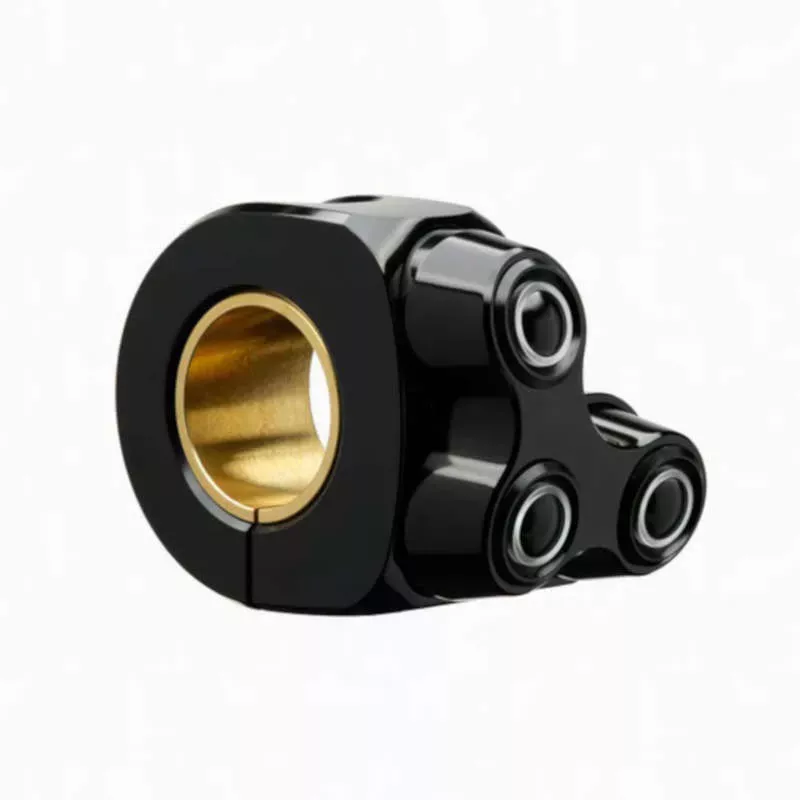

mo.unit switch basic LED 3 push buttons Motogadget - black - left

The mo.switch basic LED is a high-quality universal push button fixture for handlebars with a tube diameter of 1 inch or 22.2 mm (7/8 inch), featuring a sleek and elegant design. In combination with an electronic push button control (not included), these CNC-machined push button frames can switch all electrical units such as lights, turn signals, electric starter, horn, and much more. CNC-milled from billet aluminum, the housing is anodized in glossy black. The individual push buttons are high-quality, very robust, and protected against vibration and splash water (IP65). In the standard version, they are equipped with white LED push buttons. Each push button color can be customized in 5 different LED colors. Thanks to their sufficient size and ergonomic pressure point (light mechanical actuation), they provide a secure switching feel when operated—even when wearing gloves. Two connections per push button make it easy to implement single-wire or two-wire wiring. A ground connection is already provided internally for single-wire wiring. This makes it easy to route the cables through the handlebars. In case of damage, the push buttons are available separately and can be replaced.

MORE DETAILS:

Color: black
Material: CNC aluminum
3 buttons
Position: left
Inner diameter: 7/8 and 1 inch
Outer diameter of housing: approx. 45 mm
Width: 2 buttons 22 mm, 3 buttons 42.5 mm
Fully wired push button.
High-quality 1.8 m long connection cable.
LED-illuminated push buttons, LED color to be selected when ordering.
High-quality CNC milled from solid material and UV-resistant anodized.
Black housing color, black push button, white LED push button.
Maximum switching current of the push button: 1A, all push buttons switch to ground.
Additional switching electronics mo.unit required.
