Motoscope Pro Motogadget speedometer

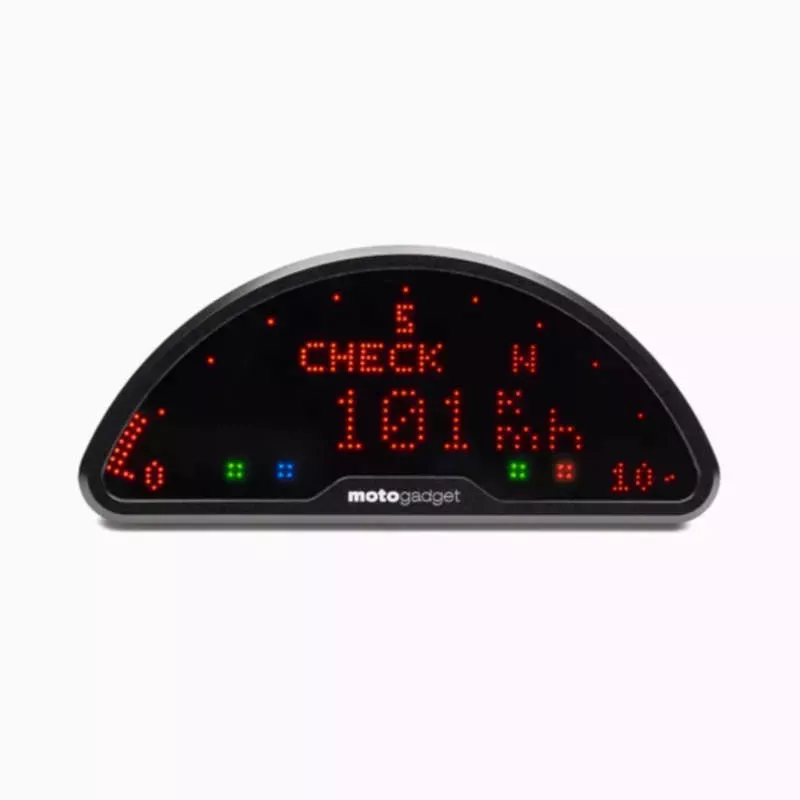

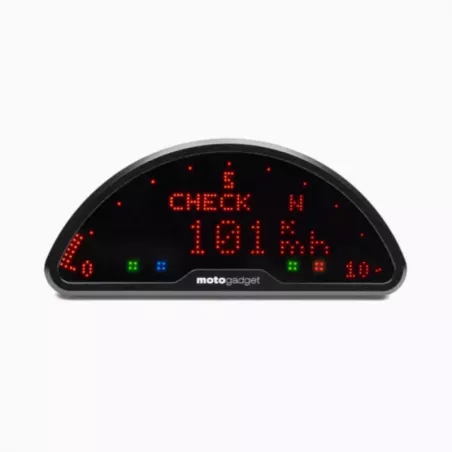

The motoscope pro stands out with its ultra-flat housing design.

734 LEDs, controlled by a 16-bit RISC processor, form a self-illuminating display matrix. Thanks to the high light/dark contrast and automatic brightness control, optimal readability is guaranteed both in bright sunlight and at night. An LED bar with trailing needle function allows the display of RPMs at the desired scale. The main display and secondary display can be individually configured, while the gear indicator is shown in a separate display area.

Four integrated indicator lights, combined with the screen text, provide a clear and quick overview of all possible error messages.

The motoscope pro is compatible with all modern automotive BUS systems and is easy to install thanks to Plug & Ride versions. With the supplied vehicle bracket and connector, replacement with the original instrument can be completed within minutes. Removal is also possible at any time. The housing is CNC-machined from solid aluminum, anodized, and mounted with two screws via threaded sockets at the rear. The instrument has a general operating license (ABE) and does not require registration.

Connection of indicator lights and sensors is centralized via the optional Breakout Box connector.

Universal use on all carburetor models equipped with a Breakout Box. Vehicle-specific Plug & Ride versions are also available.

MORE DETAILS:

Warning lights
High beam
Neutral
Universal warning light & text messages
Left / right turn signal
Speed bar
Trailing needle
Adjustable: 0 - 6, 8, 10, 12, 14, 16, 18 krpm
Shift light
Adjustable: 0 - 20 krpm

Display Functions:
Speed indicator up to 999 [km/h/mph]
Trip A 999.9 [km/mi]
Trip B 999.9 [km/mi]
Odometer 999999 [km/mi]
RPM 0–14,000 [rpm]
Oil temperature 0–200 [°C / °F]
Water temperature 0–200 [°C / °F]
Air temperature -20 – 100 [°C/°F]
Oil pressure 0–10.0 [bar/psi]
Operating hours counter 9999 [h]
Trip time [h:mm:ss]
Clock
0–100 km/h time – 99.99 s
Acceleration 0 – 2.00 [G]
Average speed 999 [km/h/mph]
Maximum speed 999 [km/h/mph]
Max positive acceleration 0 – 2.00 [G]
Max negative acceleration 0 – -2.00 [G]
Maximum RPM 20,000 [rpm]
Board voltage 9 – 15 [V]
Fuel gauge 0 – 100 [%]

Configurable Alerts:
Oil temperature
Water temperature
Board voltage
Air temperature
Oil pressure
Fuel capacity
Service interval
Speed warning (shift light)

Technical Data:
Dimensions (L/W/D): 109mm / 47mm / 11mm
Weight with cable: approx. 100 g
Mounting: 2 x M3 threaded sockets
Operating current: max 200 mA
Standby current: 400 µA
Operating voltage: 9 V – 18 V
Operating temperature: -20° to +80°C

THE KIT INCLUDES:

Instrument with 75 cm connection cable
Menu push-button
Cable ties
9 cable terminals
Tacho sensor (M5, stainless steel, IP68) with 150 cm connection cable
2 neodymium magnets
2 M3 fixing screws with washers
QR code for installation and operating instructions

Optional accessories (to be ordered separately):
Breakout Box (connection for indicator lights and sensors)
Universal mounting plate
High-quality push-button
Oil pressure sensor
Oil temperature sensor
Water temperature sensor
Air temperature sensor
